Automatic printing-head lifting system for easier cleaning
Independent lifting working printing-heads
Honeycomb structure aluminum pallets
Individual control panel on each printing head for controlling print and flood speed height and angle of the squeegees Stroke length
Machine rotation with AC servomotor
Squeegees movement with AC Inverter
U-shaped screen clamping system (optional if requested)
Screen registration system with Vernier scale
Ability to set up flash-cure units under the printing heads
Polychromatic LCD touch screen as the main control panel
Two laser supporting arms with 4 dot-line lasers

S-MAK BOLD	PM						PL						PX
Colours / Pallets	1016	2026	3238	4450	5460	5864	1016	2026	3238	4450	5460	5864	1016	2026	3238	4450	5460	5864
Colours (max)	10	20	32	44	54	58	10	20	32	44	54	58	10	20	32	44	54	58
Pallets	16	26	38	50	60	64	16	26	38	50	60	64	16	26	38	50	60	64

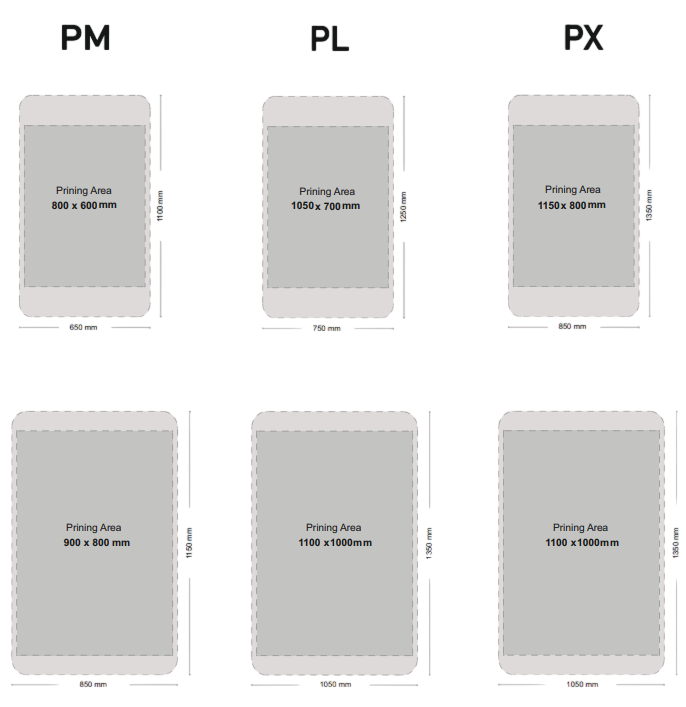

Standard Printing Area (mm/in)	800 x 600 / 31” x 24”						1050 x 700 / 41.1” x 27.6”						1150 x 800 / 43.3” x 31.4”
Standard Pallet Size (mm/in)	1100 x 650 / 43.3” x 25.6”						1250 x 750 / 49.2” x 29.5”						1350 x 850 / 53.1” x 33.5”
Printing Area in Double Index (mm/in)	900 x 800 / 35.4” x 31.4”						1100 x 1000 / 43.3” x 39.4”						1100 x 1000 / 43.3” x 39.4”
Max Pallet Size in Double Index (mm/in)	1150 x 850 / 45.3” x 33.4”						1350 x 1050 / 53.1” x 41.3”						1350 x 1050 / 53.1” x 41.3”
Max Production (per hour)*	950						900						850
Max Frame Measure (mm/in)	1200 x 720 / 47.2” x 28.3”						1400 x 800 / 55.1” x 31.5”						1500 x 950 / 59.1” x 37.4”
Frame Profile Thickness (min - max) (mm/in)	50 x 50 / 2” x 2”
Compressed Air Consumption (l/min)	120 l/min + number of heads × 60 l/min
Pre-Drying Connections (outlets)	One less than number of printing heads
Power Rating (kVA)**	8.2	13.4	22.4	28.6	33.8	35.9	10.3	17.6	29	37.9	45.3	48.2	10.27	17.57	29.05	39.21	46.51	49.43
Length (mm/in)	7640 /300.8”	11730 /461.8”	16690 /657”	21650 /852.4”	25780 /1015”	26600 /1047”	9525 /375”	15130 /595.7”	21615 /851”	28100 /1106”	33500 /1318”	35655 /1404”	10670 /420”	16710 /658”	23950 /942.9”	31190 /1228”	37225 /1466”	39640
Height (mm/in)	1785 / 70.3”
