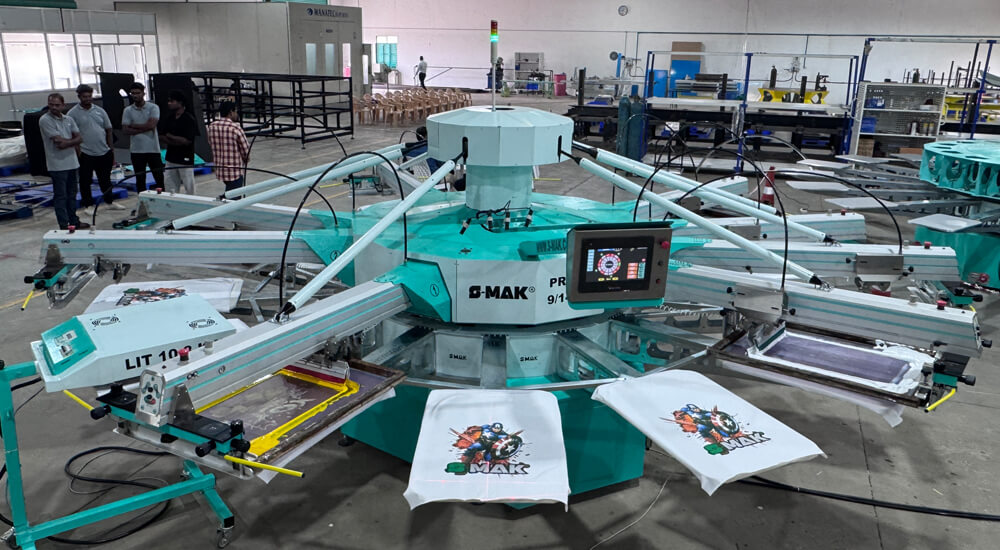

Main Features

  • Automatic printing-head lifting system for easier cleaning
  • Independent lifting printing-heads
  • Aluminum pallets with honeycomb structure
  • Individual control panel on each printing head, for controlling the print and flood speed, height, angle of the squeegees and the stroke length
  • Screen registration system with Vernier scale
  • Machine rotation with AC servomotor
  • Squeegees movement with AC Inverter
  • U shaped screen clamping system (or other if requested)
  • Ability of setting up flash-cure units under the printing head
  • Polychromatic LCD touch screen as the main control panel

Options

  • Additional laser arm
  • 4 cylinders squeegee carriage
  • Skip function
  • Vacuum version, with Suction Pallets
prime
S-MAK PRIME PT PS
Pallets 10 12 14 10 12 14 16 18 20
Standard Printing Area (mm/in) 550 x 500 / 21.7'' x 19.7'' 700 x 500 / 27.6'' x 19.7''
Maximum Printing Area in Double Index (mm/in) 700 x 700/27.6'' x 27.6'' 800 x 850 / 31.5'' x 33.5'' 1150x900 / 45.3'' x 35.4'' 1250 x 900 / 49.2'' x 35.4''
Standard Pallet Size (mm/in) 820 x 550 / 32.3'' x 21.7'' 950 x 550 / 37.4'' x 21.7''
Maximum Pallet Size in Double Index (mm/in) 950 x 750/ 37.4'' x 29.5'' 1050 x 900 / 41.3'' x 35.4'' 1150x900 / 45.3'' x 35.4'' 1250 x 900 / 49.2'' x 35.4''
Maximum Production (per hour)* 1200 1100
Maximum External Frame Measure (mm/in) 900 x 600 / 35.4'' x 23.6'' 1050 x 660 / 41.3'' x 25.9''
Measure of the Frame’s profile (min - max) (mm/in) 25 x 25 / 1'' x 1'' - 40 x 40 / 1.6'' x 1.6''
Compressed Air Consumption (l/min) 20 l/min + 90 l/min each Printing Head
Pre-Drying Connections (outlets) 3 / 6 3 / 6 5 / 7 4 / 6 4 / 6 5 / 7 5 / 7 5 / 7 5 / 7
Power Rating (kVA)** 6.3 7.3 9.3 6.3 7.3 9.3 10.3 12.4 13.4
Diameter (mm/in) 4200 / 165.35'' 4850 / 190.9'' 5250 / 206.7'' 4630 / 182.3'' 5200 / 204.72'' 5580 / 219.7'' 5950 / 234.3'' 6300 / 248'' 6800 / 267.7''
Height (mm/in) 2090 / 82''

* One squeegee coating with 30cm long. ** These values exclude lash-cure units’ consumption. The total value (with the lash-cure units’ consumption) should be calculated paying attention to the model and number of flash-cure units in use. - Feeding type available: 230 V, 3 x 230 V, 3 x 400 V on 50Hz or 60Hz.
